Navigator Nano S
Navigator Nano S

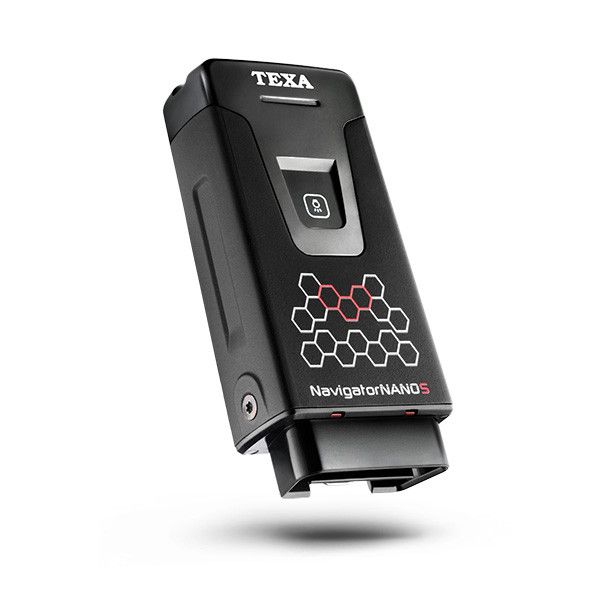

Navigator NANO S je TEXA novi komunikacijski dijagostički uređaj izrađen da zadovolji robusnost i funkcionalnost potrebnu u savremenom servisu.
On kombinuje visoke performanse tradicionalnih
uređaja TEXA TX serije sa iznenađujućim dimenzijama i težinom.
Zahvaljujući sopstvenom napajanju i Bluetooth konekciji sa TEXA interfejsom Axone4 ili Axone 4 Mini, izbegavaju se problemi kablovske veze.
Posebno razvijen za dijagnostiku AUTOMOBILA i MOTO programa.
• Smanjene dimenzije uređaja
• Domet Bluetooth-a 100m

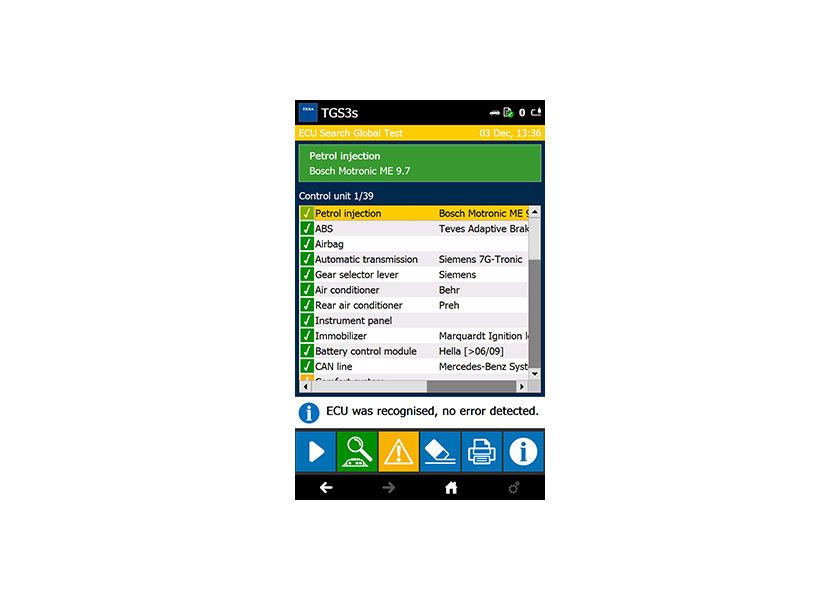

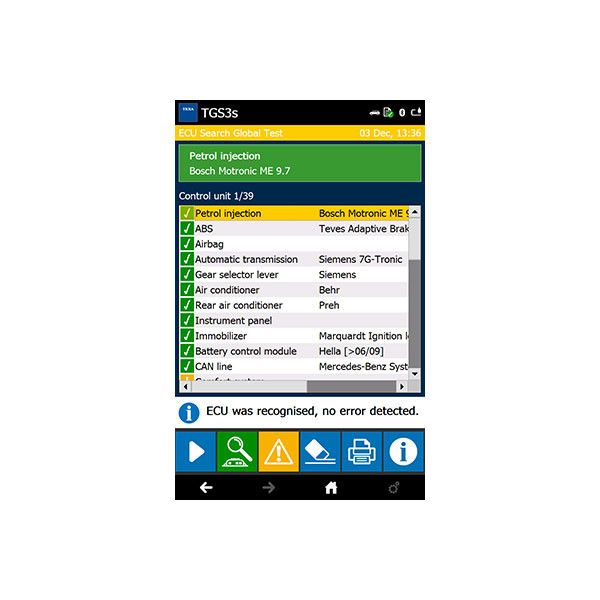

• Radi sa IDC5 softverom
Tehničke karakteristike:
PROCESSOR
CORTEX M3 STM32F103 72MHz
MEMORY
External SRAM: 8 MBit organised in 512 K x 16 bit
External NAND flash memory: 2 Gbit on 8 bit bus
INTERNAL BATTERY
Lithium polymer, single cell, 3.7 V 250 mA/h
VEHICLE ELECTRICS
12 VDC vehicle systems
EXTERNAL POWER SUPPLY
8 ÷ 16 V
WIRED CONNECTION
Virtual RS232 via USB 2.0 device
WIRELESS CONNECTION
Bluetooth Class1
ELECTRONIC SWITCHING
2 way, 13 independent positions
DIAGNOSTICS CONNECTOR
OBD
ENVIRONMENTAL
Operating temperature: 0 ÷ 50 °C
Storage temperature: -20 ÷ 60 °C
Operating relative humidity: 10% ÷ 80% non-condensing
DIMENSIONS
51x23x100 mm
WEIGHT
72 g
PROTOCOLS SUPPORTED
Blink codes, K, L (with 60mA current protection) ISO 9141-2, ISO 14230, CAN ISO 11898-2, CAN ISO 11898-3, SAE J1850 PWM and VPW
STANDARDS
Directive: 1999/5/EC
Safety: EN 60950-1
Electromagnetic Compatibility: EN 301 489-1, EN 301 489-17
Radio systems: EN 300 328-2
Sajt proizvođača
