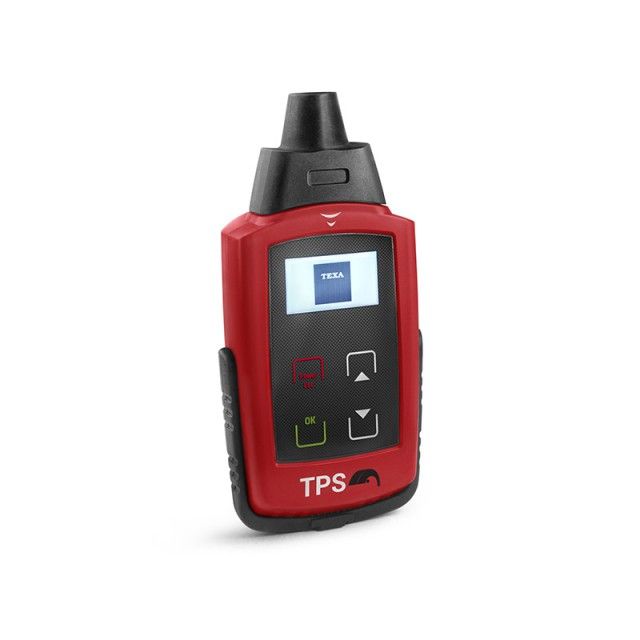

Proizvod specijalno namenjen za kontrolu, podešavanje i kodiranje TPMS ( TyrePressureMonitoringSystem).
Posle odabira marke i tipa vozila TPS dalje sam komunicira sa senzorom na svakom pojedinačnom točku.
Dalje senzore možete aktivirati, proveriti njihovu efikasnost, proveriti stanje baterije i posle ponovo kodirati u skladu sa specifikacijom proizvođača
Tehnički podaci
PROCESSOR
Cortex M0+ , 48 MHz
COPROCESSOR
Custom on FPGA (sensor communications)
RAM
16 MB
DISPLAY
Dimensions: 1.5”, Type: backlit monochrome LCD, Resolution: 64x128
TRANSMISSION FREQUENCY
125 kHz
RECEPTION FREQUENCY
315 MHz - 433 MHz - 434 MHz
CABLE COMMUNICATIONS
USB
WIRELESS COMMUNICATIONS
Bluetooth class 2 with integrated antenna
BATTERY
Type: Li-ion, Capacity: 1100 mAh, Voltage: 3.7 V
AUTONOMY
approx. 8 hours
CONSUMPTION
500 mA from USB port
RECHARGE
via USB, approx. 3 hours
ENVIRONMENTAL
Operating temperature: - 10 °C to 40 °C
Storage temperature: - 20 °C to 60 °C
Battery charging temperature: 0 °C to 45 °C
Relative humidity, storage and functioning: 10% to 80%, non-condensing
DIMENSIONS
63x142x30 mm
WEIGHT
136 g
DIRECTIVES
Directives: 1999/5/EC R&TTE, 2011/65/EU ROHS
Electromagnetic Compatibility:ETSI EN 301-489-1:2011, ETSI EN 301-489-17:2012
Radio systems: ETSI EN 300 328:2012-06
Safety:EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2001 + AC:2011
